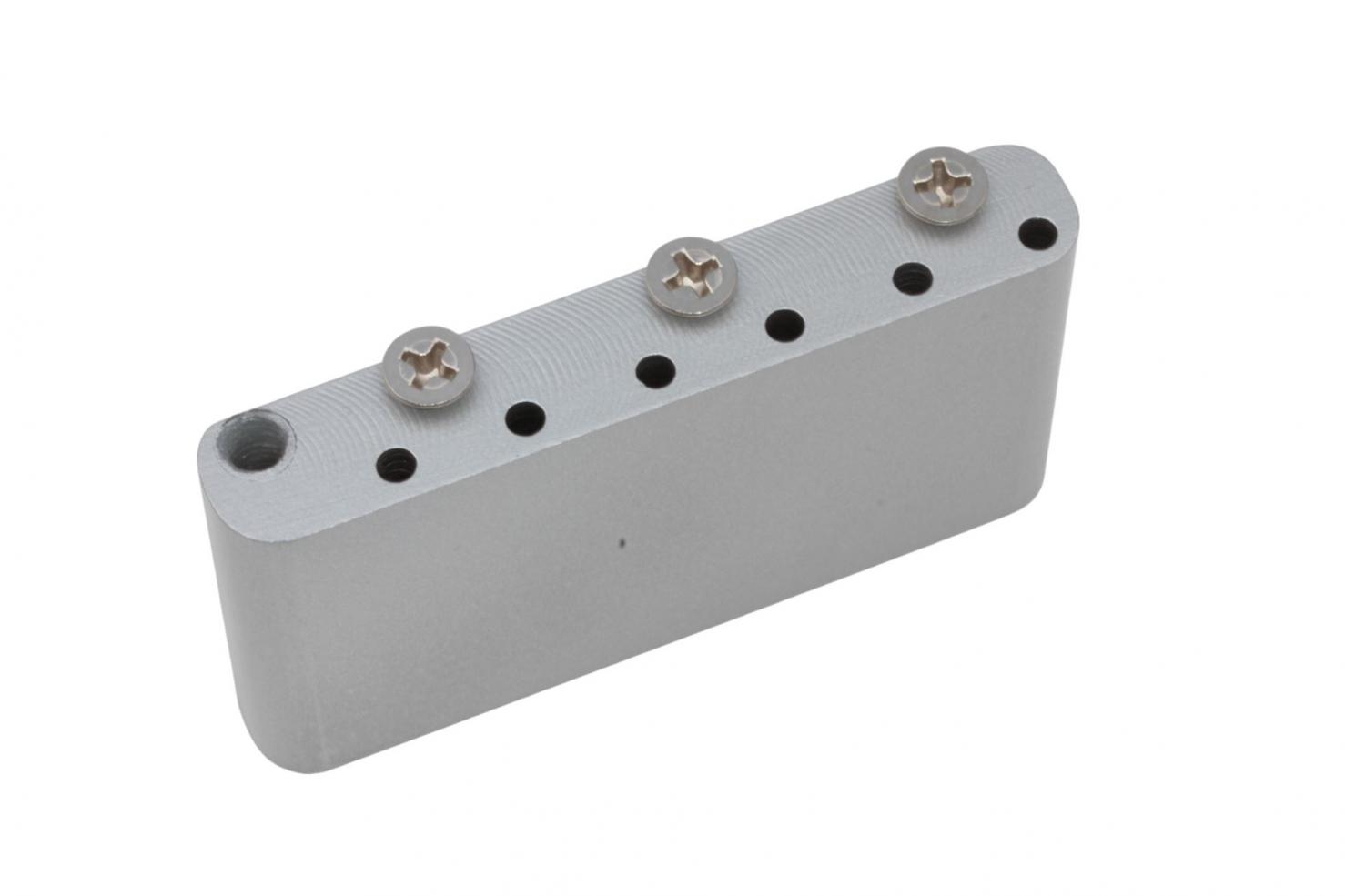

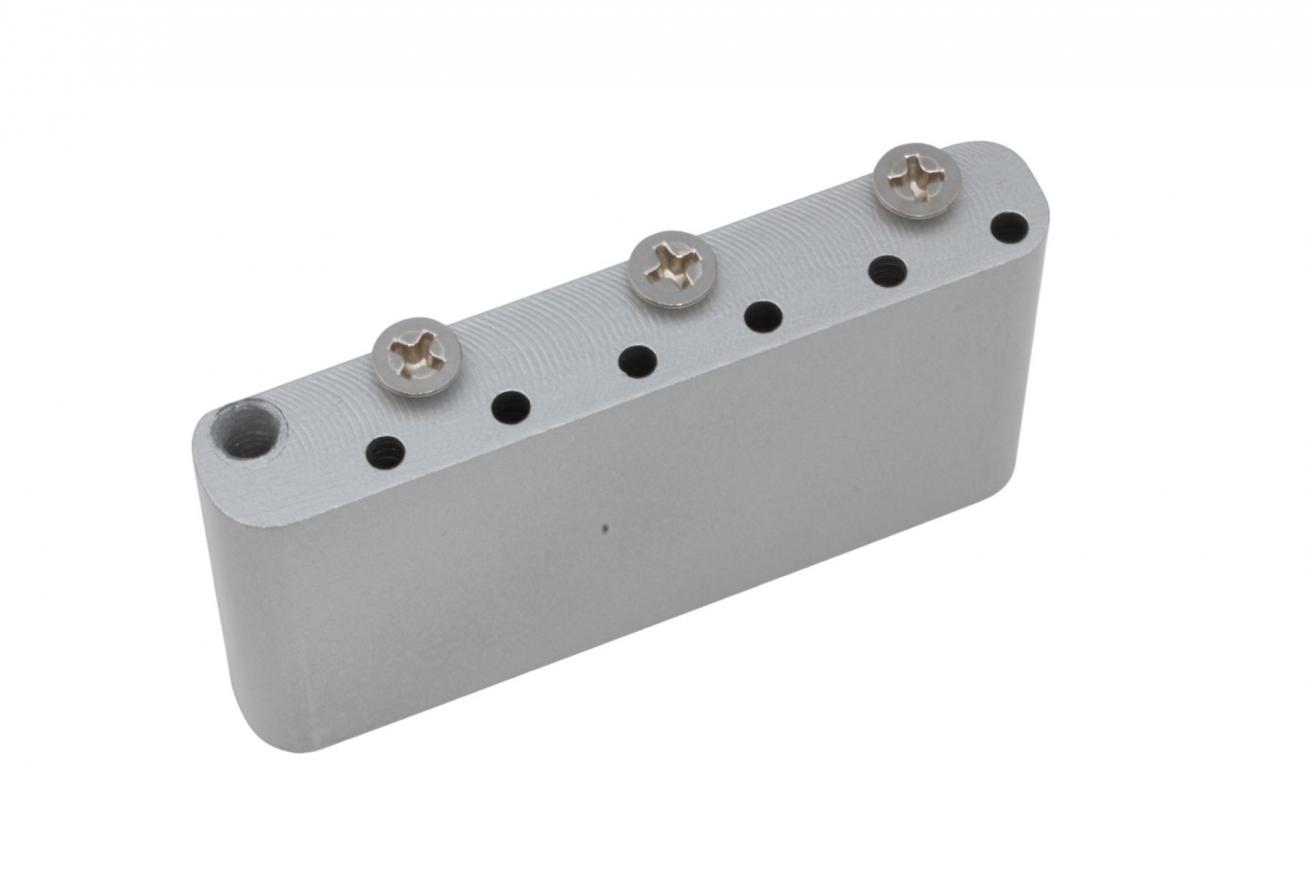

Pre-CBS Enhanced 60'VIntage Tremolo Block

This is our 60's Vintage Specs Steel block with threaded for 10-32 english threaded arms.

The original design of the sychronized tremolo although revolutional at the time has several flaws. These flaws have never been addressed by Fender and they even carry these flaws into the American Standard Tremolos and their Mexican models. The problem is the .205 DIA x 3/16 long counterbore in the top of the block.

The counterbore creates a tremendous stress riser on the first thread of the trem arm, the weakest section of the arm, because the arm is completely unsupported at the top of the block. The forces developed when using the trem are applied directly to the threaded section of the arm. It doesn't matter if the arm is made from high strength materials, it will eventually fail right at the first thread. The counterbore also reduces the leverage over trem springs. Fender arms also have significant play in the threads making the bridge very slow to respond and making subtle vibrato effects difficult.
